Storage Cabinet for 2 IBCs Premium Range Z/DM/ECO732L

storage-cabinet-for-2-ibcs
storage-cabinet-for-2-ibcscabinet-for-two-ibcs-insulatedcabinet-for-two-ibcs-insulated-closedcabinet-safety-door-fastener
£ 6,946.00 excl VAT (£ 8,335.20 incl VAT) each
DELIVERY NOT INCLUDED

Please contact us for delivery price & to order.

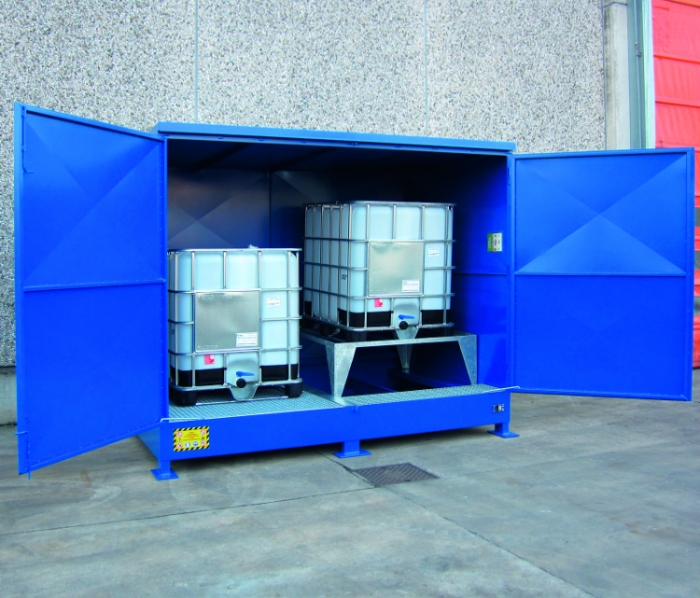

Outdoor Storage Unit For 2 IBCs

This high quality storage cabinet is suitable for the outside safe storage of up to two 1000 litre IBC's (Intermediate Bulk Containers) containing flammable or hazardous materials. Constructed of overpainted galvanized sheet steel with a certified steel sump.

This model is designed to accommodate uo to two optional raised tilted support shelves, model SPC102Z, sold seperately, that transforms the cabinet into a safe transfer station.

The range is fully galvanized and overpainted. The collection tank is constructed from overpainted galvanized sheet metal with a galvanized removable grille suitable for holding spills.

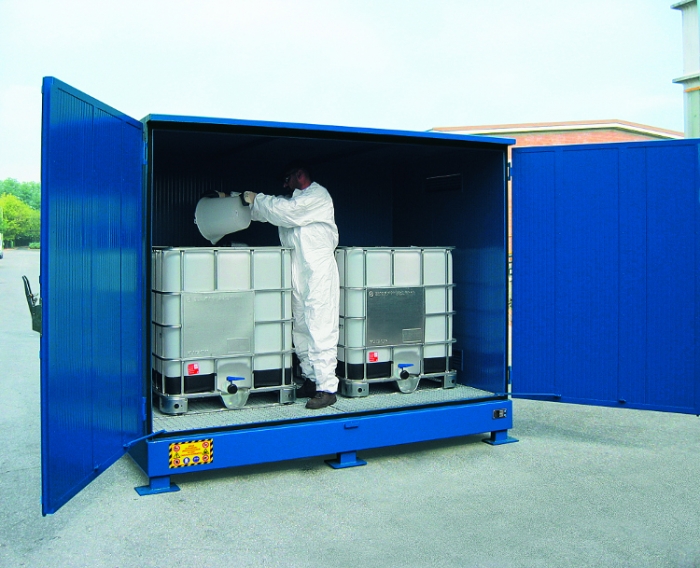

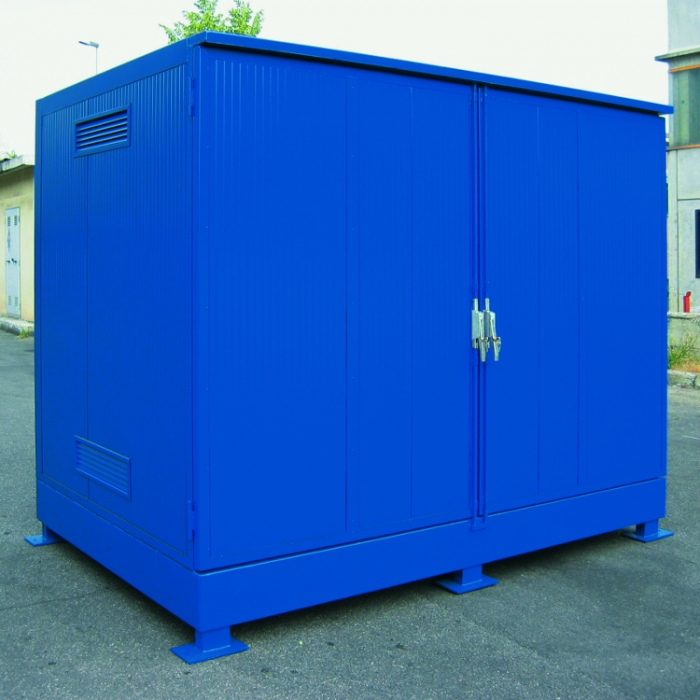

This cabinet is also available in a insulated version which prevents overheating by the sun in the summer and condensation in the colder periods of the year. With this model all of the covering above the collection tank, the top and the door, has 50mm thick mineral wool between the galvanized panels.

As an option we can fit air intake ventilation grilles to the cabinet for storing flammable liquids with the transit area being equivalent to one thirtieth of the surface area.

Key features of the storage cabinet include:

  • Suitable for outdoor storage of up to two 1000 litre tanks
  • Made of galvanized sheet steel
  • Door with lock and key to protect contents from unauthorised access

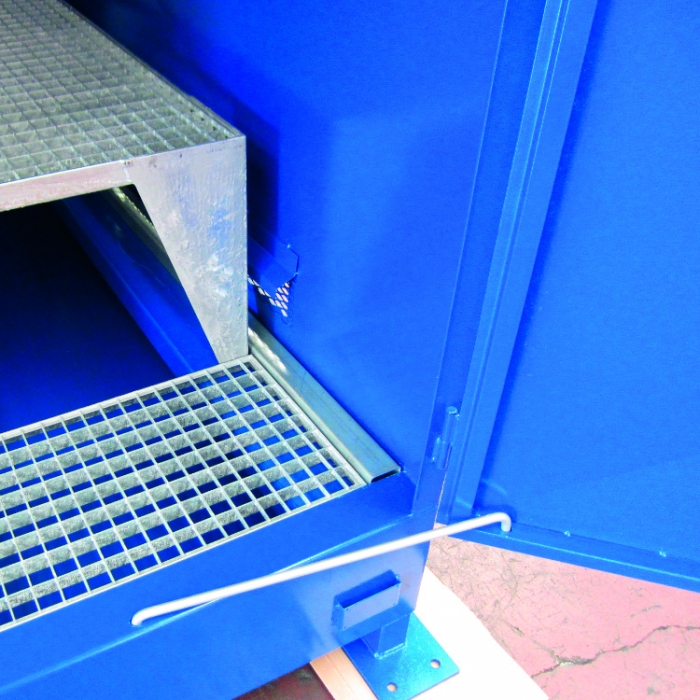

  • Safety fastener to keep the door open
  • Sump capacity 1000 litres

The collection tank conforms to the highest level of certification and is supplied with a warning panel and indentification plate fitted to the sump.

For shipping we only charge what it costs us to deliver the cabinets. We charge by the pallet to your postcode, which is calculated in the checkout - or you can collect for FREE from our premises in Kettering. The cabinets have a 4-6 week lead time.

UNI ISO 3834-3: 2006 Each containment spill pallet is subjected to non-destructive testing to ensure the basin is watertight in case of spills. This process is applied according to the following standards.

  • UN EN ISO 9712: 2012 Non-destructive testing Qualification and certification of personnel involved in non-destructive testing
  • UNI ISO 3452-1: 2013 Non-destructive testing Penetrating liquids examination - Part 1 General principles
  • UNI EN 13018: 2004 Non-destructive testing Visual inspection - General principles
  • UNI EN ISO 23277: 2010 Non-destructive welding test Welding test using penetrating liquids - Levels of acceptability
  • UNI EN ISO 5817: 2014 Welding Welded joints for cast steel, nickel, titanium and their alloys excluding energy beam welding - Quality imperfection levels
Flammable Symbol Environment Symbol Suitable for outdoors
IBC Storage Cabinet
ProductFeaturesDimensionsNet Door OpeningInner working Depth
ECO732L Uninsulated 2875x2020x2345 mm 2690x1885 mm 1670 mm
ECO732LIT Insulated 2929x1867x2392 mm 2690x1885 mm 1670 mm
