An increasing problem within the road haulage industry is how safe access is gained onto the back of a lorry or trailer. Drivers have become worryingly adept at climbing up onto the lorry wheels or balancing on the tips of forklift forks. Carrying out a risk assessment of how safe access should be gained invariably leads to needing a mobile access safety ladder.

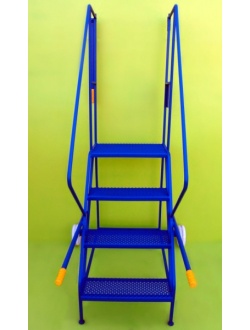

We have developed a mobile walk through access ladder. This budget version of our regular 4 step mobile ladder has a platform height of 1000mm and is fitted with 2 substantial 200mm nylon wheels. The two handles fitted to the front of the ladder allow it to be moved by being partially lifted. Also fitted is a safety rail at the top and safety notice on the side.
Please call us for a lead time
We deliver mobile safety steps with FREE SHIPPING to mainland UK, excluding Northern Ireland, Scottish Highlands and Islands. Please call for a delivery price to these regions. Prices do not include VAT.
We manufacture our mobile safety steps using prime steel and components at our factory in Kettering. Collection from our factory is possible - contact us for a discount if you wish to do this.
| Dimensions |
Standard (550mm) |
Wide (850mm) |
| Platform Height From Ground |
1000mm |
1000mm |
| Overall Length (not inc handles) |
950mm |
950mm |
| Overall Height |
2000mm |
2000mm |
| Overall Axle Width |
1080mm |
1380mm |
| Platform Size |
550mm x 380mm |
850mm x 380mm |
| Standard Step Tread Width |
550mm x 200mm |
850mm x 200mm |
| Step Tread Vertical Spacing |
250mm |
250mm |
| Weight |
50kg |
| Load Capacity |
300kg |
300kg |
Standard White Nylon Wheels
As standard, our budget mobile safety steps are fitted with 200mm dia white nylon wheels at the back. These wheels are hard wearing and robust to give a long life, with each rated to 150kg.
Optional Rubber Wheels
As an optional extra, we can fit rubber tyred wheels. These are the same size and of a similar load rating to the nylon wheels. Rubber has the advantage of being quieter when being rolled and slightly easier to push. They cannot though easily be "skidded" sideways.
Safety Steps Standard Paint Finish
As standard, our mobile safety steps come painted, using a one coat primer/finish - Zinfos 700CT. This gives good adhesion to the steel with the primer for a long and robust life, and smart finished appearance with a 70% gloss level.
Safety Steps Galvanized Finish
As an optional extra, we are able to offer a galvanized mobile step finish. The galvanized mobile step is dip coated as a fully welded structure so retains its inherent strength and has no nuts & bolts which can loosen over time.
The galvanized zinc coating fully covers the mobile ladder protecting it from the detriments of the outside environment, especially important in external and coastal environments. It is equally useful in food preparation or scientific clean areas where it can be pressure washed regularly and there is no risk of paint flakes.
Standard Punched Steel Step Treads
As standard, our mobile safety steps are fitted with "punched and raised holes" step treads. These treads are highly slip resistant and also shed water off very efficiently.
The step treads are formed from 2mm mild steel and have 9 mm dia punched and 5 mm dia drainage holes in a square pattern. The 9mm holes are "raised" in such a way that the sharp edge of the hole is exposed which grips the sole of a shoe offering high levels of slip resistance. The step treads pass a 15mm ball bearing test - a standard test for steps and grid flooring. The punched and drainage holes give the profile an unsurpassed high strength to weight ratio.
These treads have been tested for slip resistance by the testing company Lucideon in their UKAS accredited testing laboratory. The "Pendulum Test" was originally developed for road surfaces but has grown to include all manner of surfaces such as supermarket floors or swimming pools.
Our step treads were rated as follows:
Dry test: 66 value - Extremely low
Wet test: 50 value - Low
More info on Slip testing and Ceram can be found by here Slip Resistance Testing
Optional Aggressive Step Tread
This step is more akin to a bear trap! The Aggressive step tread can be identified by oval, serrated holes that provide the top flange of the planks with a very high load capacity, and rolled side flanges that further reinforce the planks and gratings.
This step tread is used where requirements of slip resistance and drainage are high - often in marine environments, industries with oil and water, building sites, etc. Please note, this is an optional extra and also adds an extra week or so to the build time.
Other Step Treads available
As the mobile steps manufacturer, we can build the steps with whatever treads suit your requirement. This is not of course the cheapest solution. We offer a competitively priced range of standard mobile steps but acknowledge that sometimes price is not the critical factor, but rather design is.
Rubber Step Treads
Whilst we can make steps with rubber mats stuck on, we no longer offer them as a standard option. They offer no real benefit over the punched steel treads and over time, the glue will invariable fail... a corner lifts... gets caught... gets ripped off.
